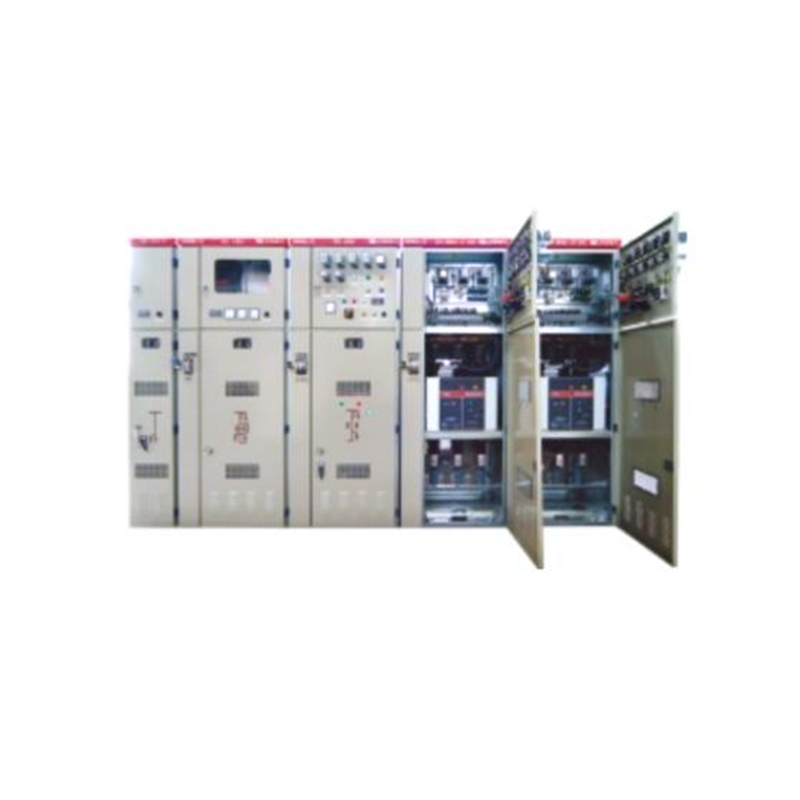

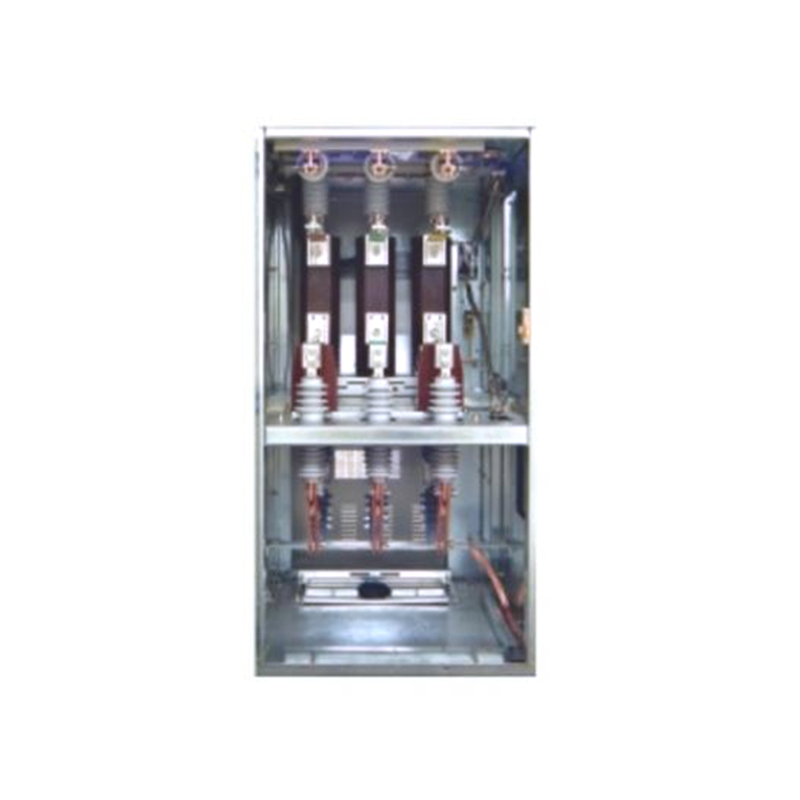

IP2X Box-Type Fixed Indoor AC Metal-Enclosed Switchgear

We would like to introduce the XGN66A-12 Box-Type Fixed AC Metal-Enclosed Switchgear, a new generation of high-voltage electrical complete products meticulously designed and developed by our company. This equipment aims to address the challenges of high accident rates and large volumes commonly associated with similar switchgear in operation within our country, benefiting from the absorption of advanced foreign technologies.

Get A Quote

PREV：IP3X Box-Type Fixed Indoor AC Metal-Enclosed Switchgear NEXT：Small Modular Center-Mounted Removable Switchgear

Description
Parameter

This switchgear strictly adheres to a multitude of domestic and international standards. It meets the requirements of national standard GB3906 "3~35kV AC metal-enclosed switchgear," Ministry of Electric Power standard DL/T404 "Technical conditions for ordering indoor AC high-voltage switchgear," and international standard IEC60298 "1kV above 52kV below AC metal-enclosed switchgear and control equipment". Its design not only complies with industry norms but also demonstrates exceptional practical utility.

The XGN66A-12 distinguishes itself with its compact cabinet volume, which is only 50% of that of ordinary switchgear, effectively optimizing installation space. In terms of performance, it boasts circuit breaker capabilities and high reliability. Furthermore, the equipment is equipped with a reliable and straightforward "five-prevention" interlocking mechanism, which significantly enhances operational safety by effectively preventing common errors.

Regarding its main technical parameters, the XGN66A-12 has a rated voltage of 12kV and a rated frequency of 50Hz. The main busbar rated current can be selected as either 630A or 1000A. The equipment's 1-minute power frequency withstand voltage reaches 42kV, and its lightning impulse withstand voltage is 75kV. Both the rated short-time withstand current for opening and closing and the rated short-time withstand current are available at 20kA or 31.5kA, while the rated peak withstand current and rated short-circuit breaking current can reach 50kA or 80kA respectively. The enclosure protection

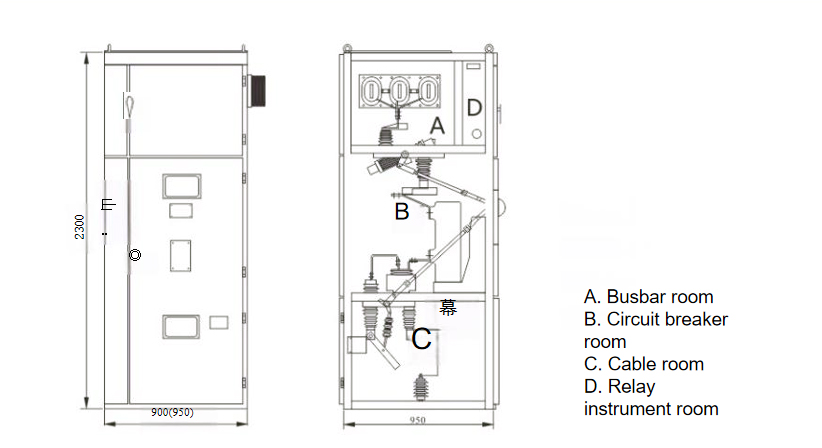

level is IP2X, and its standard dimensions are a width of 900mm or 950mm, a depth of 950mm, and a height of 2300mm.

No.	Item		Unit	Parameter
1	Rated voltage		kV	12
2	Power frequency withstand voltage for 1 min	Power frequency withstand voltage	kV	42
		lightning impulse withstand voltage	kV	75
3	Rated frequency		Hz	50
4	Main busbar rated current		A	630	1000
5	Rated short-time withstand current for opening and closing		kA	20	31.5
6	Rated short-time withstand current		kA	20	31.5
7	Rated peak withstand current		kA	50	80
8	Rated short-circuit breaking current		kA	50	80
9	Enclosure protection level			IP2X
10	Dimensions (width × depth × height)		mm	900×950×2300	950×950×2300
