Epoxy Resin Cast Dry Type Transformer - 5 to 100 kVA

The SC10-5~100 series epoxy resin cast dry type transformer ranges in rated capacity from 5 to 100 kVA. This model is specifically developed to address the growing demands of urban power distribution networks, making it particularly suitable for high-rise buildings, commercial complexes, airports, stations, and other locations with strict requirements for space, safety, and environmental performance.

Get A Quote

PREV：Amorphous Alloy Core Dry Type Transformer - 30 to 2500 kVA NEXT：Epoxy Resin Cast Dry Type Transformer - 800 to 25000 kVA

Description
Parameter

At the core of the SCB10-5~100 series transformer's high and low voltage windings lies its vacuum pressure resin casting process. This process ensures the windings possess insulation properties and impact resistance, manifested as low partial discharge and strong short-circuit resistance. These characteristics are critical for guaranteeing stable operation in confined or sensitive environments. Furthermore, both the windings and core surfaces are encapsulated by solid insulation, imparting superior moisture-proof and mold-proof qualities, enabling reliable and efficient operation even under humid or adverse conditions.

As an oil-free transformer, the SCB10-5~100 series eliminates common issues associated with traditional oil-immersed transformers, such as oil deterioration and sealing failures, thereby requiring no routine maintenance. Its inherent properties of being safe, fireproof, and pollution-free, coupled with its flame-retardant and self-extinguishing capabilities, allow it to be safely deployed directly near load centers. This offers significant advantages in enhancing power supply reliability, reducing transmission losses, and optimizing urban space utilization.

The SCB10-5~100 series prioritizes compactness and lightweight design, which facilitates easier installation. Its characteristic low operational noise also makes it highly suitable for installation in noise-sensitive areas. In terms of electrical performance, this series of transformers typically has a short-circuit impedance of 4.0%. The standard configuration includes a 10kV high voltage side, a 0.4kV low voltage side, and a Dyn11 connection group. These parameters make it ideal as a voltage transformation device at the end of distribution networks, flexibly adapting to various application scenarios.

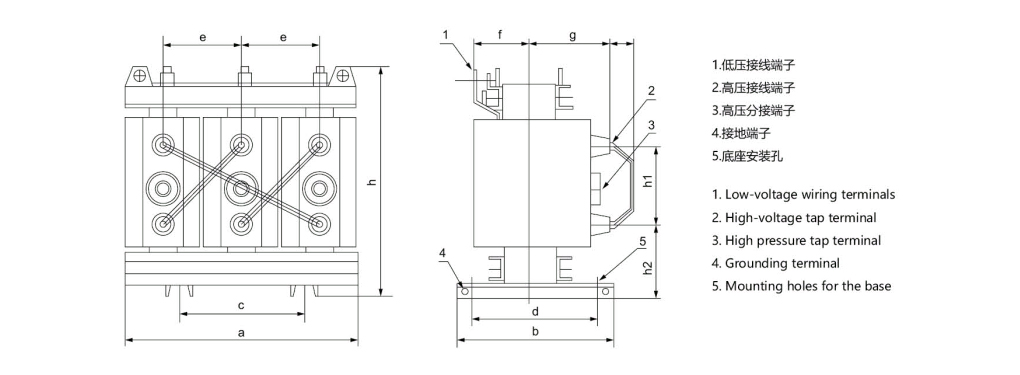

Type	Dimension(mm)
Type	a	b	c	d	e	f	9	h	h1	h2	j
SC10-5/10	515	400	300	300	175	140	195	540	190	165	80
SC10-10/10	515	400	300	300	175	140	195	550	190	170	80
SC10-15/10	575	400	400	300	195	150	210	550	190	180	80
SC10-20/10	575	400	400	300	195	150	210	550	190	180	80
SC10-25/10	585	400	400	300	200	165	210	620	195	195	80
SC10-30/10	585	400	400	300	200	165	210	620	195	195	80
SC10-50/10	610	400	400	300	210	180	240	730	260	230	80
SC10-63/10	740	500	400	400	250	175	265	775	265	235	80
SC10-80/10	740	500	400	400	250	175	265	775	265	235	80
SC10-100/10	800	500	550	400	270	185	270	840	320	255	80

Note: As the product size may be improved, the size provided in this sample is for reference only; If you need special size, we can design and produce according to user requirementsplease contact the company in time.

Rated Capacity (KVA)	Voltage combination(kV)			Connection symbol	Short-circuit impedance (%)	No-load loss (W)	Load Loss 120℃ (W)	No-load current (%)	LpA Sound Level(dB)	Weight (kg)
Rated Capacity (KVA)	H.V.	High voltage tap range %	L.V.	Connection symbol	Short-circuit impedance (%)	No-load loss (W)	Load Loss 120℃ (W)	No-load current (%)	LpA Sound Level(dB)	Weight (kg)
30	6 6.3 6.6 10 10.5 11	±5% ±2×2.5%	0.4	Yyn0 Dyn11	4	190	710	2	45	225
50						270	1000	1.5	45	300
63						340	1160	1.5	46	470
80						370	1380	1.1	46	500
100						400	1570	1.1	46	620
