This product features advanced composite insulation technology, providing resistance to ultraviolet rays, anti-aging properties, high strength, and superior electrical insulation performance. The main body of the circuit breaker and load switch utilizes APG (Automatic Pressure Gelation) sealing technology, which contributes to its oil-free and gas-free design and environmental friendliness. These technologies result in a compact structure, effectively reducing its volume, while maintaining a clearly visible breaking point.

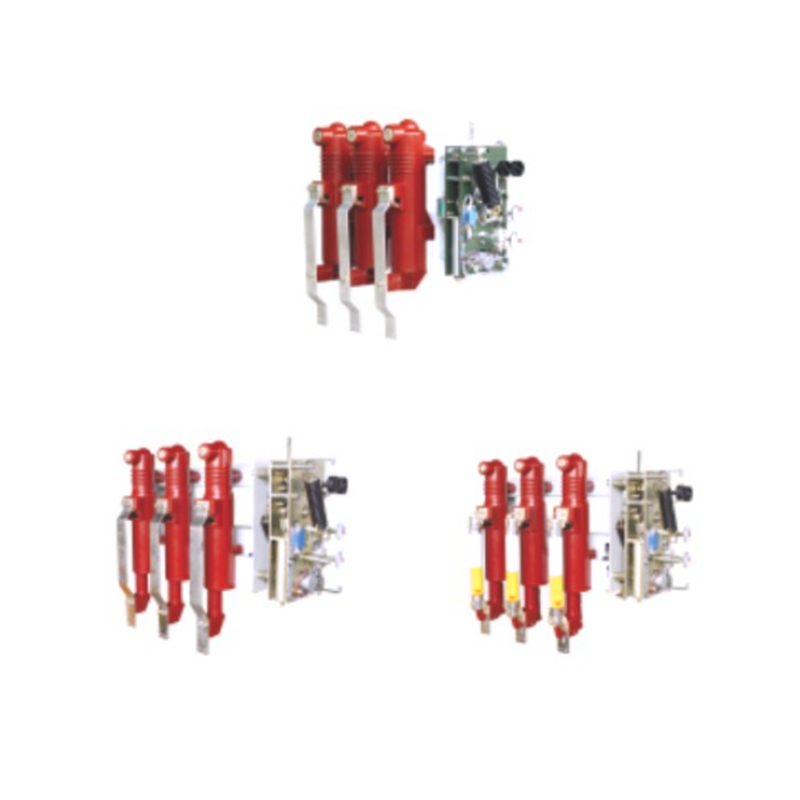

The XGN98-12 switchgear offers diverse and flexible configurations, allowing for optional equipment such as the new vacuum-sealed pole circuit breaker (ZN66-12), the vacuum-sealed pole load switch (FZN66-12), and the load switch-current limiting fuse combination device (FZRN66-12). By integrating an FTU (Feeder Terminal Unit), the equipment can achieve distribution network automation functions, supporting control, protection, measurement, and communication needs.
This switchgear is broadly suitable for secondary distribution systems with voltage levels of 12kV and below, serving as a complete switchgear for electrical energy control and protection in ring network power supply, dual radiation power supply, and segmented trunk radiation power supply systems. Its compact size, low cost, and small footprint make it a commonly used product for box-type substations, switching stations, distribution stations, and residential area power distribution, and a preferred choice for urban and rural power grid upgrades. Its main technical parameters include a rated voltage of 12kV, a rated frequency of 50Hz, a rated current up to 1250A, a rated short-circuit breaking current of 31.5kA, and a rated peak withstand current of 80kA. The enclosure protection level is IP3X.
