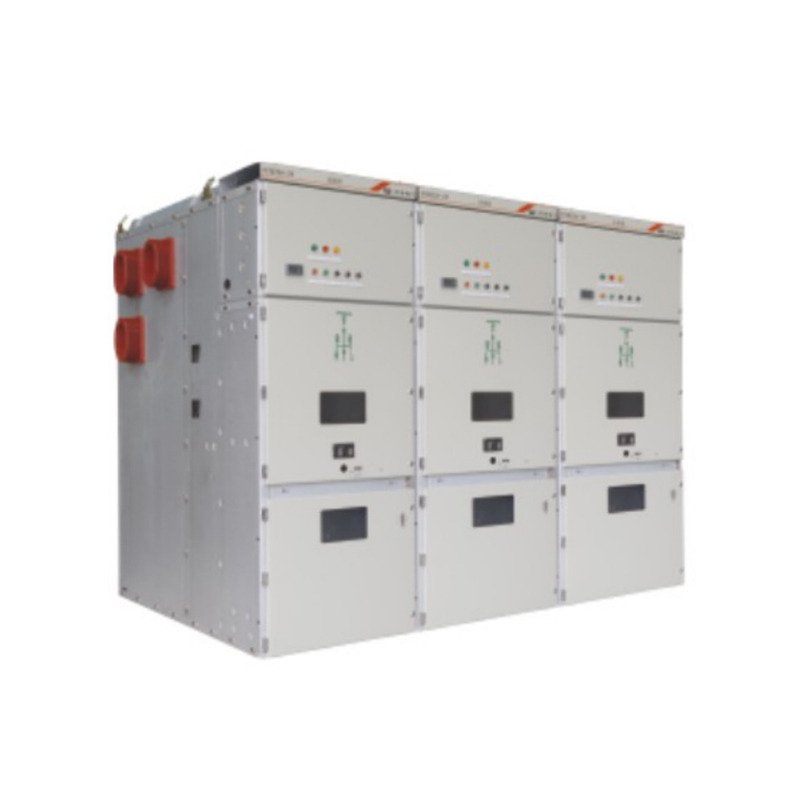

AC Metal-Enclosed Ring Network Switchgear

As a manufacturer, our company, in collaboration with the China Electric Power Research Institute, jointly designed and developed the XGN68-12 AC Metal-Enclosed Ring Network Switchgear in 2002, aiming to meet the evolving demands of modern ring network equipment. This product incorporates the essence of similar domestic and international products, featuring unique innovations.

Get A Quote

PREV： Solid Insulation Intelligent Ring Main Unit NEXT：Indoor AC Metal Enclosed Ring Network Switch Equipment

Description
Parameter

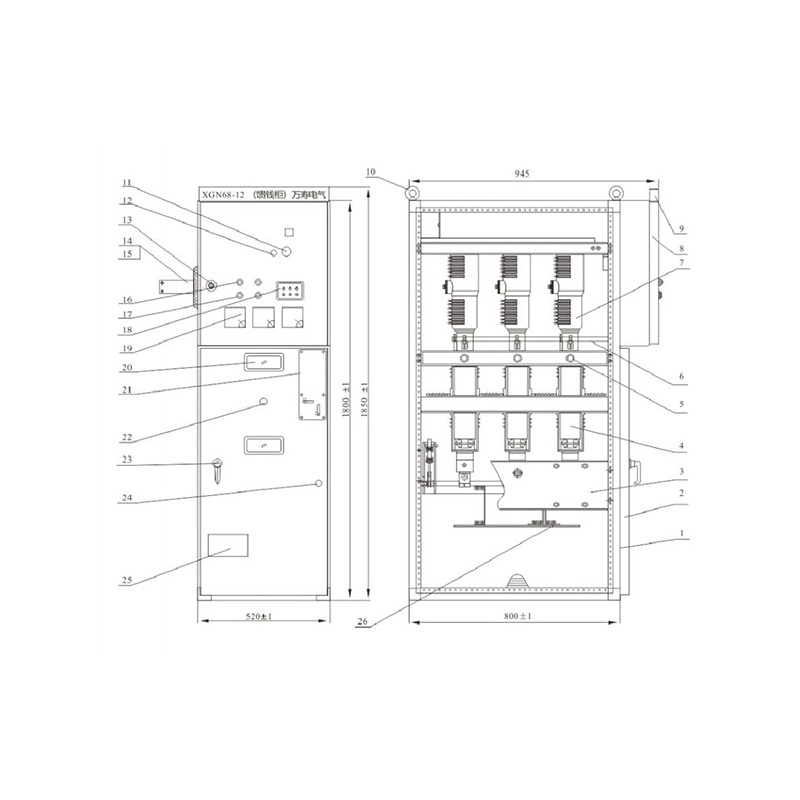

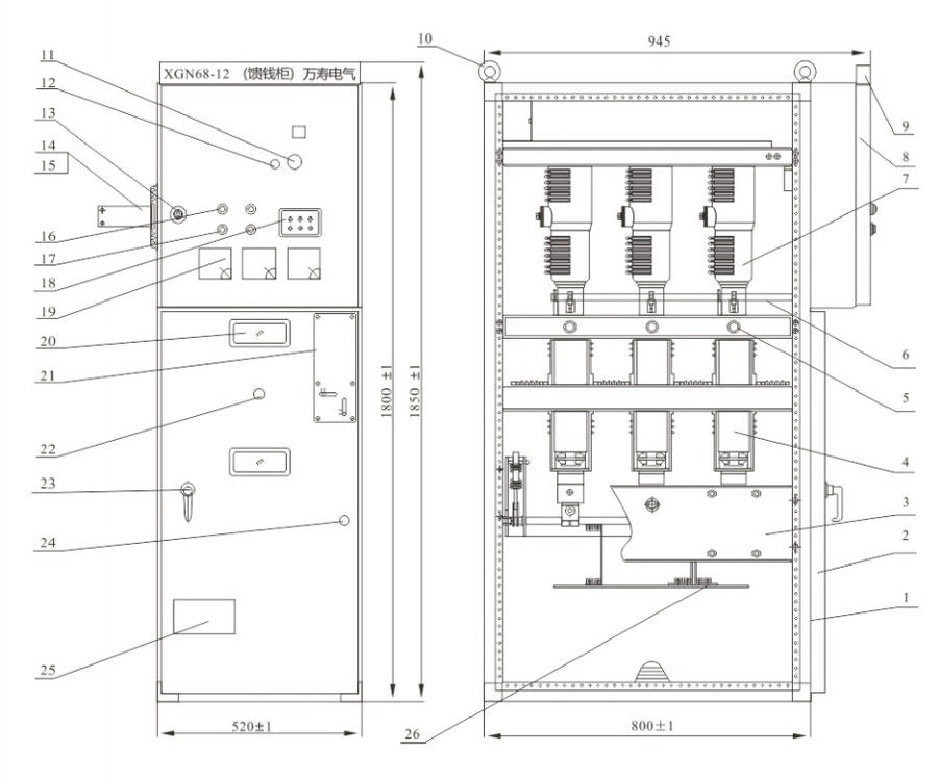

The switchgear achieves a compact volume, comparable to both vacuum and SF6 gas-insulated ring main units. Its design effectively resolves the practical challenges and hazards associated with fuse replacement in small cabinets, significantly enhancing operational safety and maintenance convenience.

The XGN68-12 demonstrates strong practicality and a high level of protection. Notably, it is currently a small vacuum ring network cabinet in China. Depending on specific requirements, the equipment can be flexibly configured with load switches and vacuum circuit breakers.

Regarding technical parameters, the XGN68-12 has a rated voltage of 12kV, a main busbar rated current of 630A, and a rated frequency of 50Hz. It features a main circuit short-circuit breaking rated current of 20kA and a short-circuit closing rated current of 50kA, with a rated dynamic withstand current (peak value) of 50kA. The mechanical life of this switchgear is 10,000 operations, and the circuit breaker's opening and closing frequency is also 10,000 times. Its 1-minute power frequency withstand voltage (phase-to-phase, to ground/isolated breaking point) is 42/48kV, and the lightning impulse withstand voltage within the cabinet (peak value) is 75/85kV (phase-to-phase, to ground/isolated breaking point). The secondary circuit power frequency withstand voltage is 2000V.

No.	Technical parameters	Unit	Technical data
1	Rated voltage	kV	12
2	Main busbar rated current	A	630
3	Rated frequency	Hz	50
4	Main circuit, short-circuit breaking rated current	kA	20
5	Main circuit, short-circuit closing rated current	kA	50
6	Rated dynamic stability current (peak value)	kA	50
7	Circuit breaker opening and closing frequency	times	10000
8	Monitoring type opening current	kA	31.5
9	Mechanical life	times	10000
10	1 min power frequency withstand voltage (effective value) phase-to-phase, phase-to-ground/isolated breaking point	kV	42/48
11	Lightning impulse withstand voltage in the cabinet (peak value) phase-to-phase, phase-to-ground/isolated breaking point	kV	75/85
12	Secondary circuit power frequency withstand voltage	V	2000
