Safety Distribution Box

Our company's meticulously developed WSBX series safety distribution box is a complete set of electrical equipment designed for single-phase three-wire or three-phase five-wire terminal circuits with a voltage below 380V and a load current not exceeding 100A. This product integrates control functions for electrical equipment and can be arbitrarily combined with overload, short circuit, overvoltage, undervoltage, and leakage protection.

Get A Quote

PREV：No previous article NEXT：Fully Safe Power Cabinets

Description
Parameter

Regarding electrical performance, the WSBX series safety distribution box has a rated working voltage of AC380V (50Hz) and a rated insulation voltage of up to AC660V. The main bus rated current supports configurations from 100A up to 600A, while the main switch breaking capacity is 15kA. Under short-circuit conditions, the rated short-time withstand current (1s) for this distribution box is 15kA, and the rated peak withstand current is 30kA.

In terms of structural characteristics, the WSBX series safety distribution box is available in various size configurations, with width and depth options of 600mm, 800mm, or 1000mm, and a consistent height of 1800mm. The enclosure protection level reaches IP30.
This product series is widely used in modern buildings, foreign-related buildings, industrial and mining enterprises, and residential buildings.

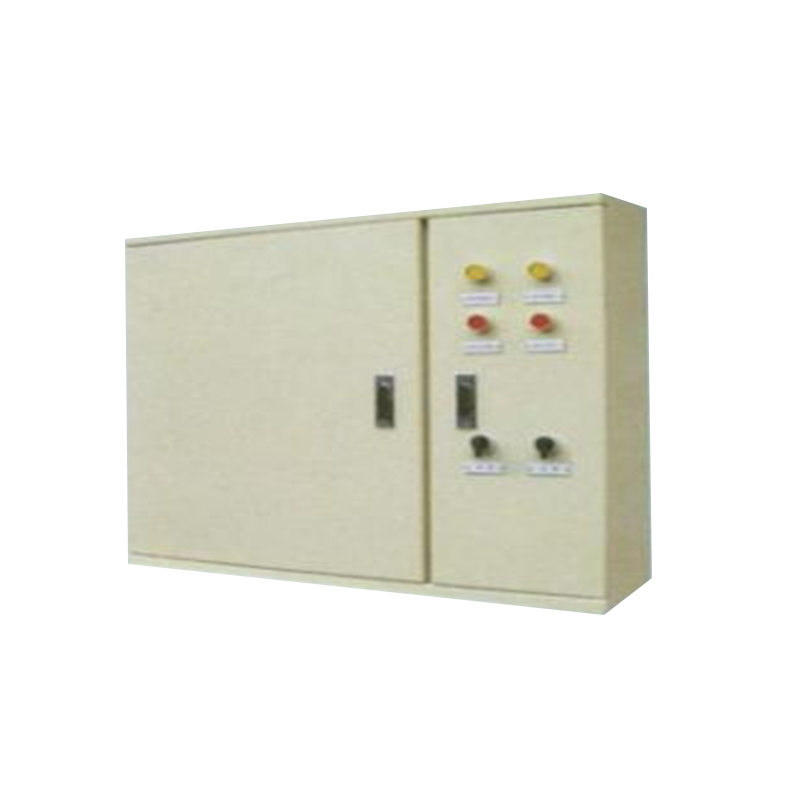

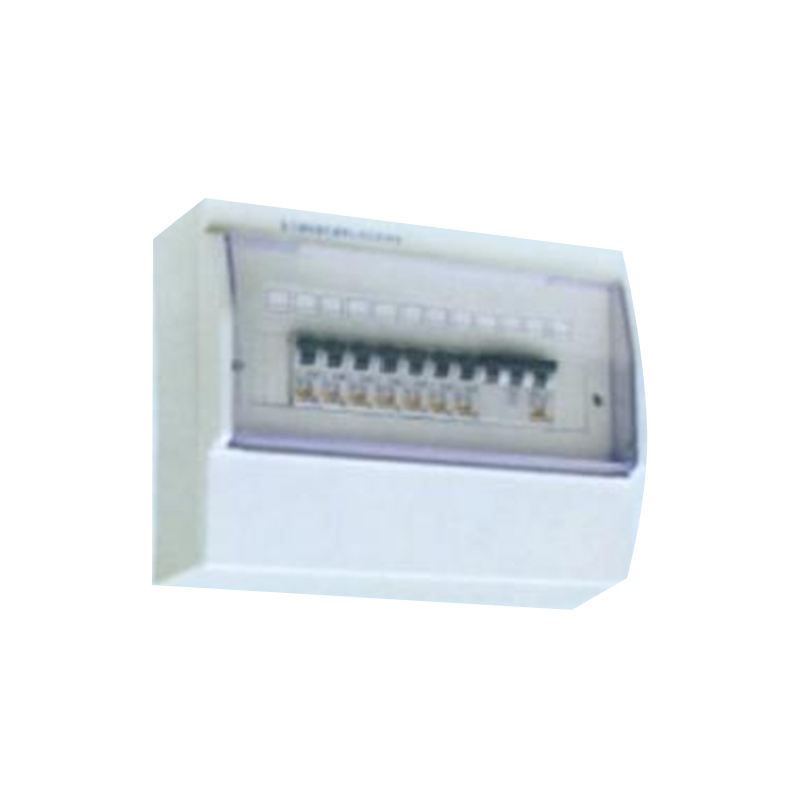

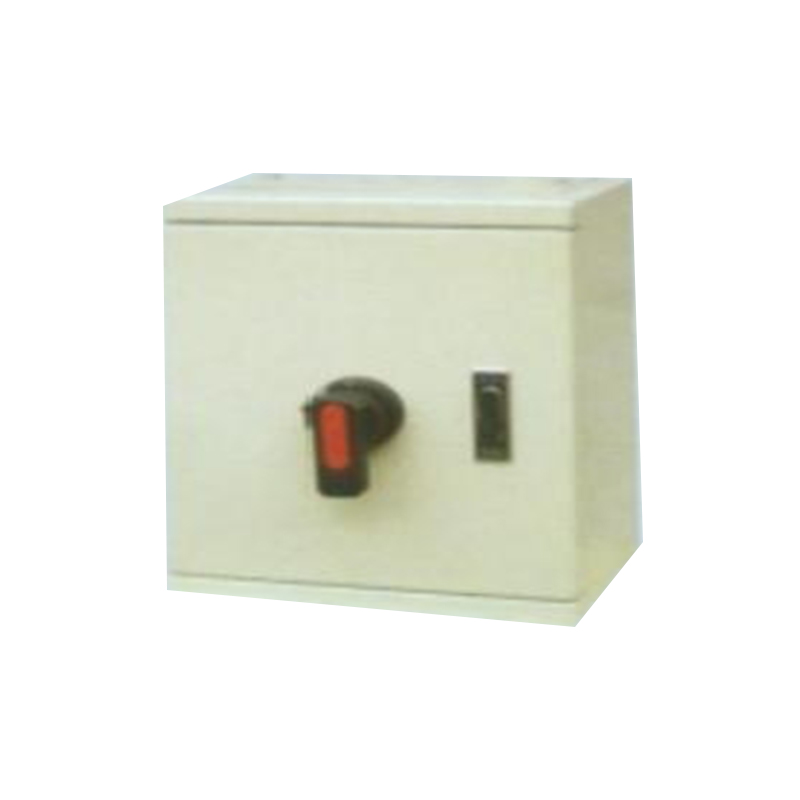

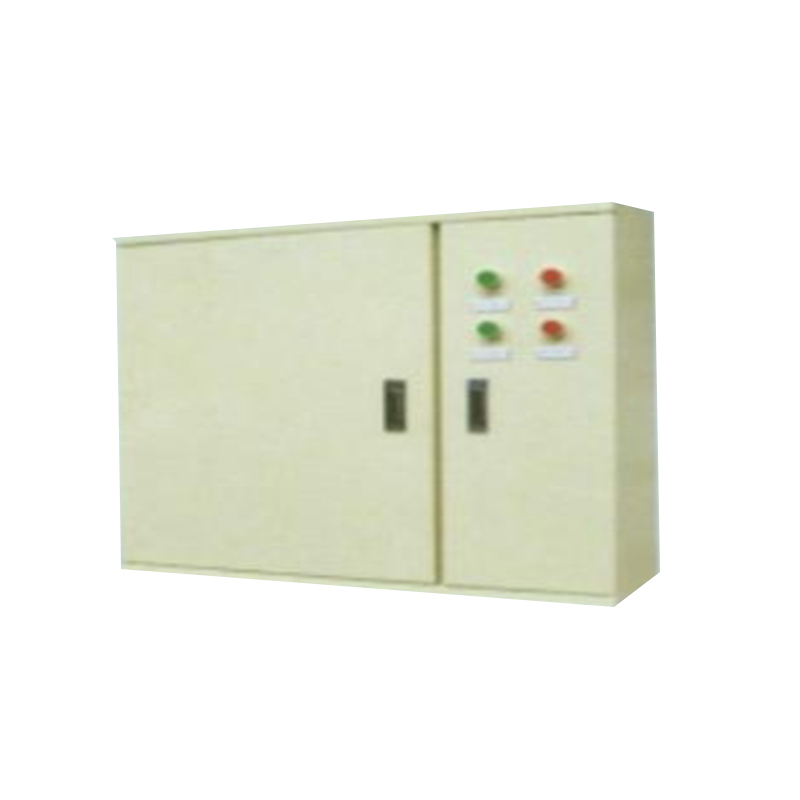

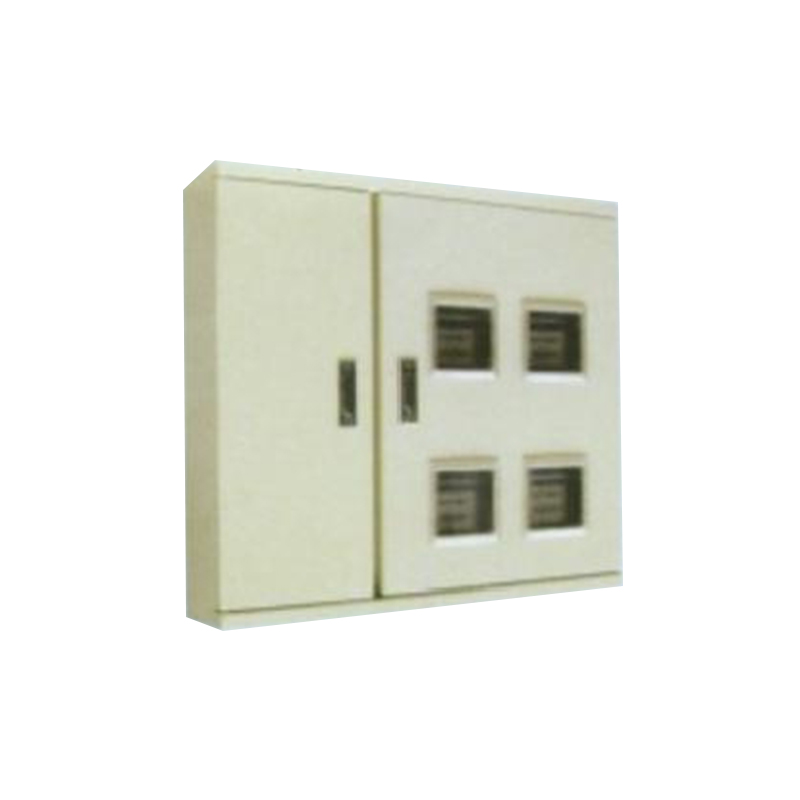

The WSBX series encompasses various specific models to meet diverse application requirements, such as the WSBX10 Dual Power Switching Distribution Box, WSBX20 Electric Energy Metering Distribution Box, WSBX8 Power Switch Distribution Box, WSBX6 Rib Type Distribution Box, WSBX9 Control Distribution Box, and WSBX1 and WSBX2 Terminal Distribution Boxes. We are committed to providing solutions that can effectively replace GBL, XL-21, XF-10, and XGL series products.
